What is Coaxial Cable？

2021-07-09

What is Coaxial Cable？

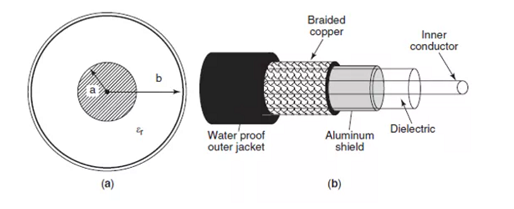

The Coaxial Cable is a kind of broadband microwave Transmission Cable composed of two Coaxial Cylindrical Conductors with Radius a and b, filled with air or high frequency medium between the inner and outer conductors





Actually the Coaxial Cable consists of Protective Outer Jacket, Braid & the Dielectric Foil & the inside Conductor. The Transmission Electromagnetic Field mode of the Coaxial Cable is as follows:

Coaxial Cable transmits electromagnetic waves in TEM mode, and the cross-sectional electric and magnetic field distributions are as follows:





Finally, let’s learn about the types of Connectors when using Coaxial Cables:





Connector type

Frequency  Limit

Dielectric



DIN 1.6/5.6

1 GHz

PTFE



BNC

4 GHz

PTFE



SMB

4 GHz

PTFE



OSMT

6 GHz

PTFE



OSX, MCX, PCX

6 GHz

PTFE



QMA

6 GHz

PTFE



MMCX

6 GHz

PTFE



7/16

8 GHz





SMC

10 GHz

PTFE



SMA

25 GHz

PTFE



TNC

15 GHz

PTFE



N

11 GHz

normal

18 GHz

precision

PTFE



APC-7, 7 mm

18 GHz

PTFE



OSP

22 GHz

PTFE



3.5 mm

26.5 GHz

Air



SSMA

38 GHz

PTFE



2.92 mm

40 GHz

Air



K

40 GHz

Air



GPO, OSMP, SMP

40 GHz

PTFE



2.4 mm

50 GHz

Air



1.85 mm

60 GHz

Air



V

60 GHz

Air



1 mm

110 GHz

Air
